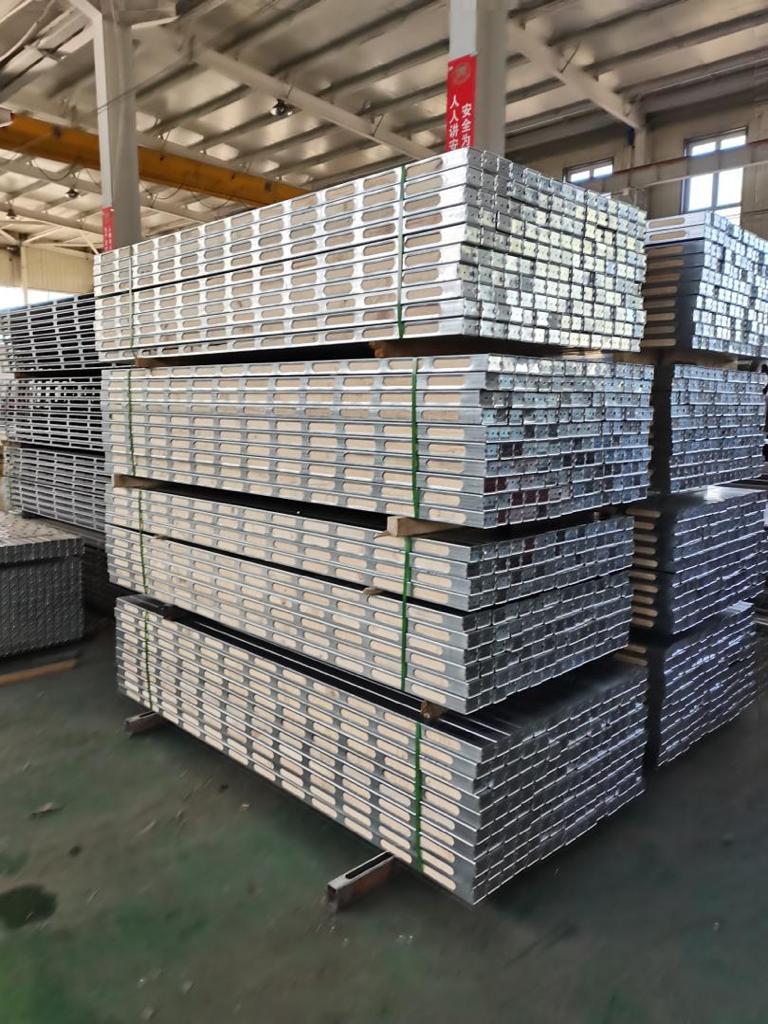

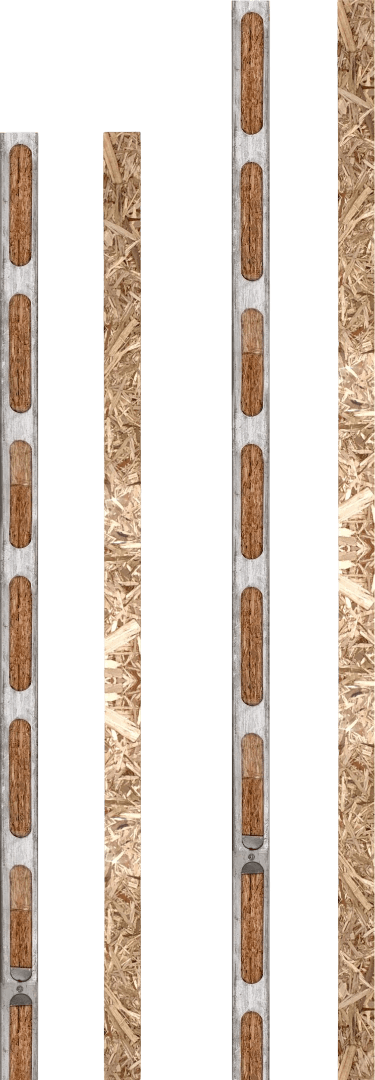

About J70 StiMBERᵀᴹ

StiMBERᵀᴹ - is a unique, concept utilising the combined strengths of steel and timber bound together with application in construction formwork.

StiMBERᵀᴹ is a natural choice for those looking at a holistic solution that encompasses the benefits of 10x repetitions alongside strength & ease of handling like none other.

BENEFITS OF J70 StiMBERᵀᴹ

BENEFITS OF J70 StiMBERᵀᴹ

Why Choose
J70 StiMBERᵀᴹ?

Lowers dependency on raw timber, hence aids towards sustainability by reducing deforestation

Higher repetitions result in lower cost per usage

Galvanised hence corrosion resistant & greater strength

Designed for Higher Safety on work sites

Light weight, easy to install by nailing to panels

J70 BASIC

J70 BASIC

J70 BASIC

J70 PLUS

J70 PLUS

J70 PLUS

J70 PRO

J70 PRO

J70 PRO

SHEAR TEST RESULTS

Sr. No.

Sr. No.

Sr. No.

1

1

1

2

2

2

Average

Average

Average

Ultimate Shear Strength (kN)

Shear Strength (kN)

Ultimate Shear Strength (kN)

9.52

9.52

9.52

8.47

8.47

8.47

8.99

8.99

8.99

BENDING TEST RESULTS

Failure Load

Failure Load

Failure Load

9.64

9.64

9.64

8.21

8.21

8.21

Average

Average

Average

Ultimate moment capacity (kNm)

moment capacity (kNm)

Ultimate moment capacity (kNm)

4.33

4.33

4.33

3.69

3.69

3.69

4.01

4.01

4.01

El (kN sq.m.)

El (kN sq.m.)

El (kN sq.m.)

65.52

65.52

65.52

60.80

60.80

60.80

WIDE RANGE OF APPLICATIONS

WIDE RANGE OF APPLICATIONS

Versatile Applications

Wide Range of applications that serve wide range of purposes.

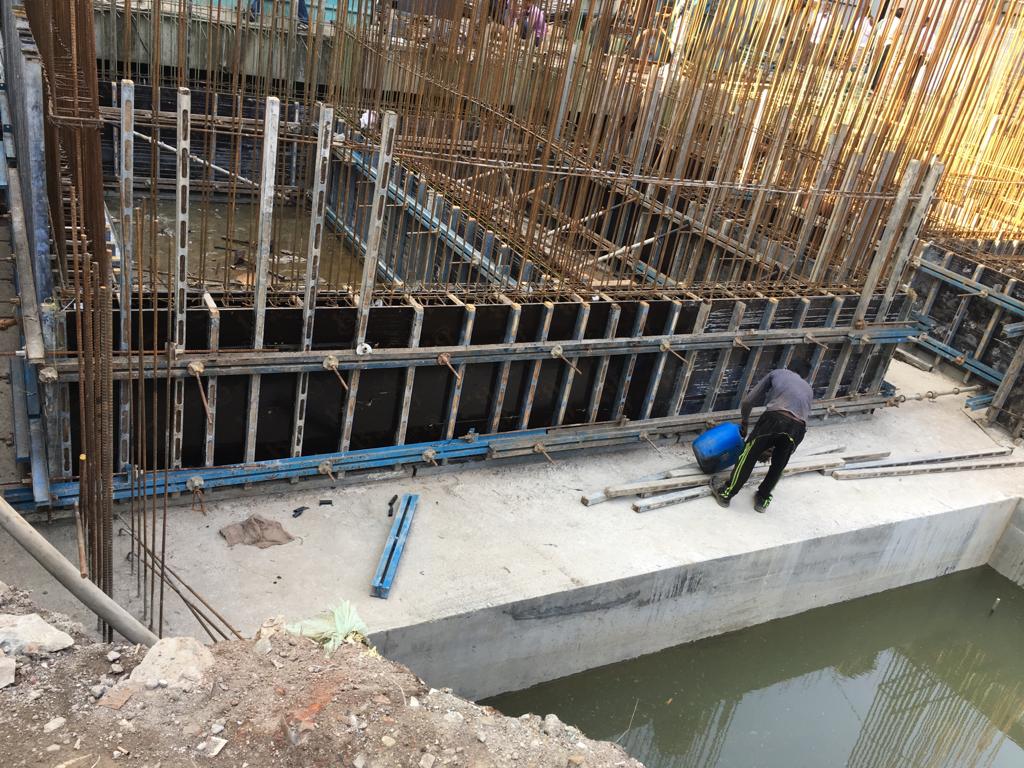

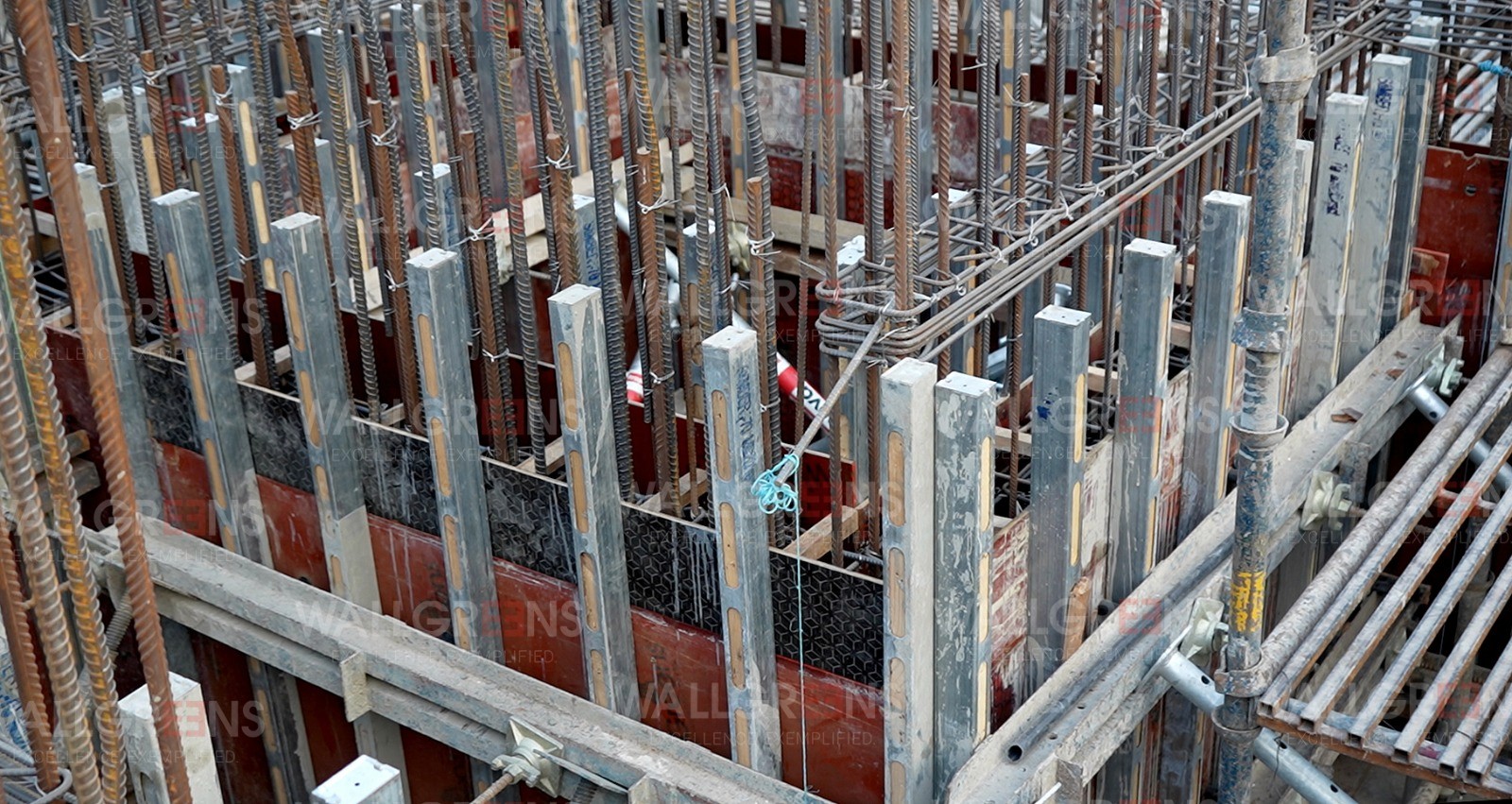

Retaining Wall

Retaining Wall

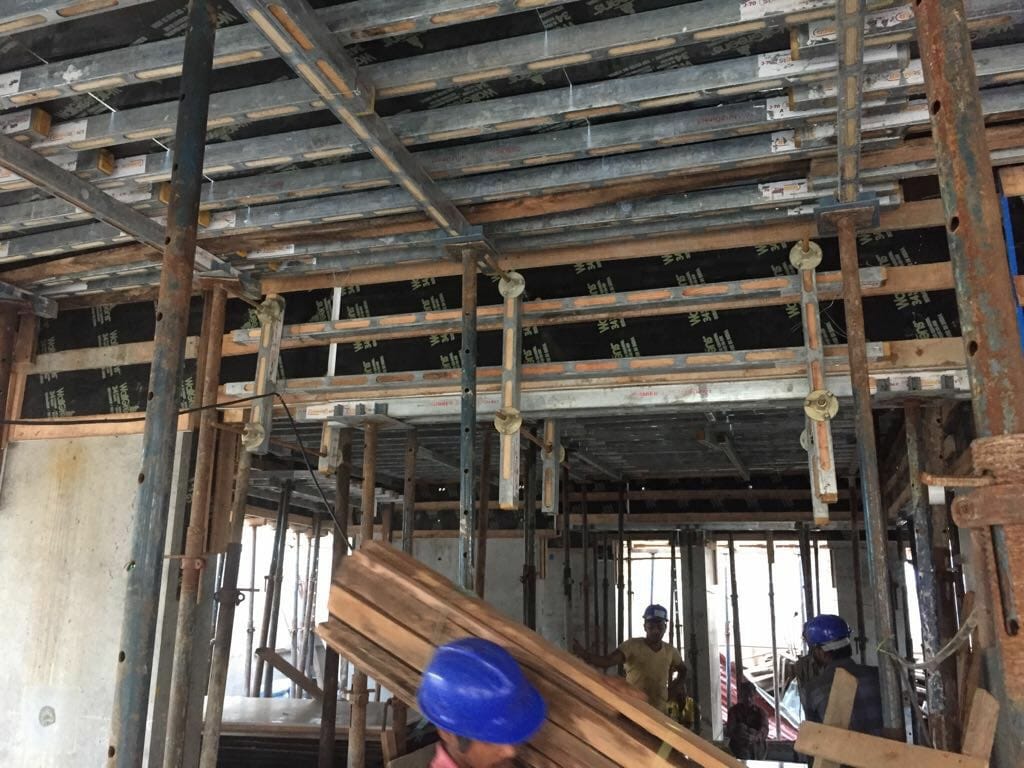

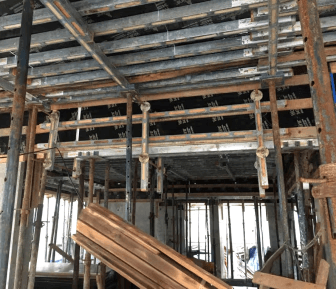

Beam

Beam

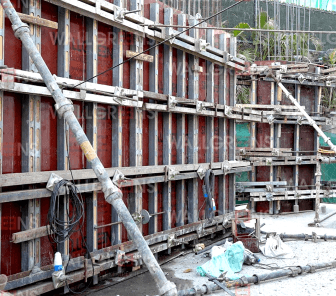

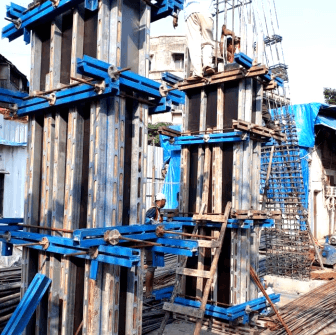

Column

Column

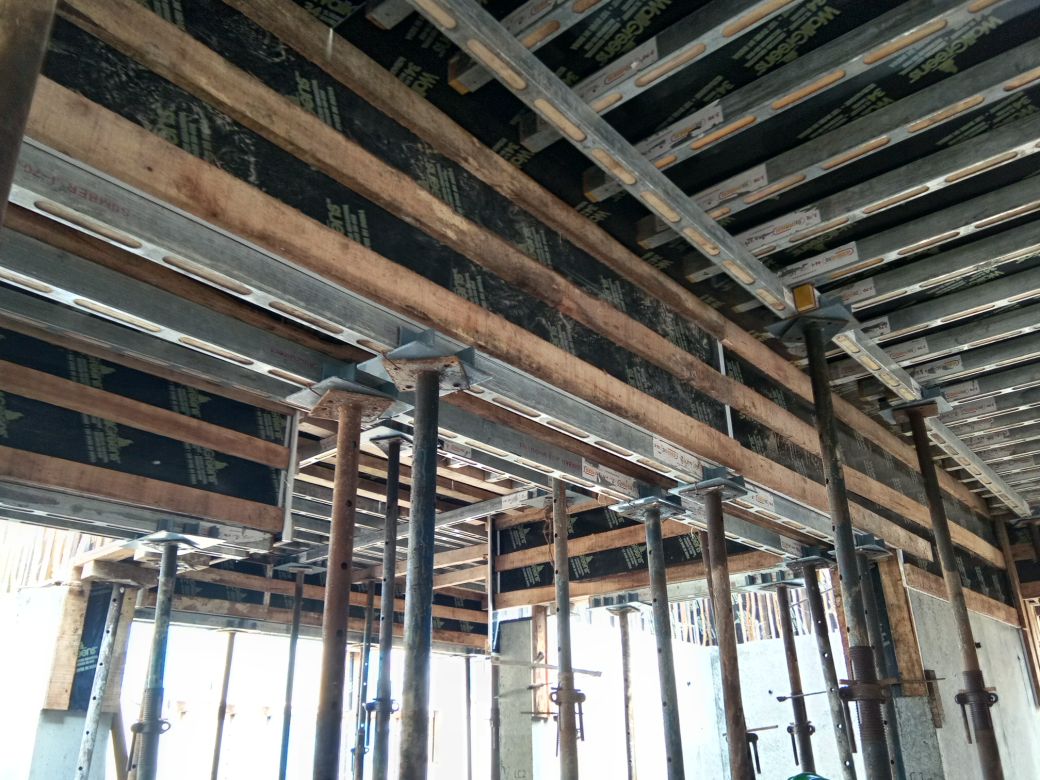

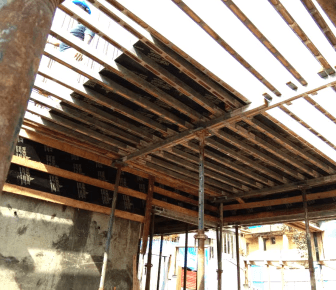

Slab

Slab

STRIKING TECHNICAL SPECS

STRIKING TECHNICAL SPECS

Technical Specifications

Specifications that bring transparency to performance, capability, and compatibility.

Variants

Basic, Plus, Pro

Steel Grade

YST 310 prime coil

Surface Treatment

HDG 70 Microns

Filler (Basic)

Painted European Spruce

Filler (Plus)

Oriented strand board (OSB)

Filler (Pro)

Waterproof Plywood base LVL with 4 side 2mm plastic melt wrapping

End Caps

HDG 2mm Steel end caps

Pipe Thickness

2mm

Dimensions

70mm x 50mm

Available standard length

12m, 1.5m, 1.8m, 2.4m, 3m & 3.6m

Weight per metre

4.5kgs

Variants

Basic, Plus, Pro

Steel Grade

YST 310 prime coil

Surface Treatment

HDG 70 Microns

Filler (Basic)

Painted European Spruce

Filler (Plus)

Oriented strand board (OSB)

Filler (Pro)

Waterproof Plywood base LVL with 4 side 2mm plastic melt wrapping

End Caps

HDG 2mm Steel end caps

Pipe Thickness

2mm

Dimensions

70mm x 50mm

Available standard length

12m, 1.5m, 1.8m, 2.4m, 3m & 3.6m

Weight per metre

4.5kgs

Variants

Basic, Plus, Pro

Steel Grade

YST 310 prime coil

Surface Treatment

HDG 70 Microns

Filler (Basic)

Painted European Spruce

Filler (Plus)

Oriented strand board (OSB)

Filler (Pro)

Waterproof Plywood base LVL with 4 side 2mm plastic melt wrapping

End Caps

HDG 2mm Steel end caps

Pipe Thickness

2mm

Dimensions

70mm x 50mm

Available standard length

12m, 1.5m, 1.8m, 2.4m, 3m & 3.6m

Weight per metre

4.5kgs

RELIABILITY AT ITS BEST

RELIABILITY AT ITS BEST

Robust Features

Designed with engineering precision and built to endure demanding site conditions, our systems deliver reliability where it matters most—on every floor, every pour, every time.

Lifespan upto 20 Years

Safe Working Conditions

Sustainable

High Load Capacity

MORE INFO HERE

MORE INFO HERE

Unlock Detailed Insights

Dive deeper into specifications, performance data, and system advantages with our product brochures — your complete guide to choosing the right solution.
